Postby ZK-MAT » Sun Jul 30, 2006 5:49 pm

This post contains many screenshots, although I have reduced the size of the images so it should load relatively quickly.

Information

Vatsim is an online world network of people interested in Flight Sim. You are able to connect to the network as a pilot or undertake training to manage the airways as ATC. For the purposes of this post I will concentrate on connecting to fly as a pilot.


Registration

To join Vatsim head over to Vatsim, and click the Join Now button. After reading the Code of Conduct and the following page enter your details with a valid email address. You must use your real name to connect to the Vatsim network.

The NZ division of Vatsim is named VATNZ


Software

There are currently two versions of the connection software, SquawkBox and FSInn. Personally I think Squawkbox is cleaner (ie less fussy in design) and easier to configure. Others like FSInn. It's all personal preference as they do the same things but for this post I will concentrate on Squawkbox.

Download the latest Squawkbox software 3.1 from http://squawkbox.ca/downloads/ and install onto your PC. It's a One-Time download that includes all the plane model sets so you don't need anything else.

The system also includes its own voice software, so in the end there's only one FS module running with no other programs.

Installation

I have used screenshots with my details in them, so of course use your own name, member number and password. This information is mirrored here

1. Click Modules / Start Squawkbox




2. Squawkbox loads




3. Click Start / Connect




4. Fill in your details. Select a server (Oceania for NZ is closest but can be any server - they all inter-connect), Enter your User ID, password (numerical),callsign, home airport and full name.

It will show the last plane you flew. To add a new plane, click Aircraft List.



5. Click Add




6. Type in a descriptive name for your aircraft, then click Search




7. Enter a search phrase in the Aircraft Type section. I am looking for a 767 300 in Air New Zealand Livery.




8. Scroll through the results and double-click the aircraft you want.




9. Now click Search in the Airline and Livery section.




10. Enter a search phrase. Use the most unusual of any search term words. If I typed Air New Zealand it will also show results for all airlines with 'Air' and 'New' in them!




11. Double-click the desired result.




12. Now you have the aircraft and livery selected. You only need to do this once as it will remember this particular setting. Click OK.




13. You are back to the plane select screen with your new plane showing. Click OK, and on the next screen, press Connect.




14. Connecting to the network...



... and, Connected!

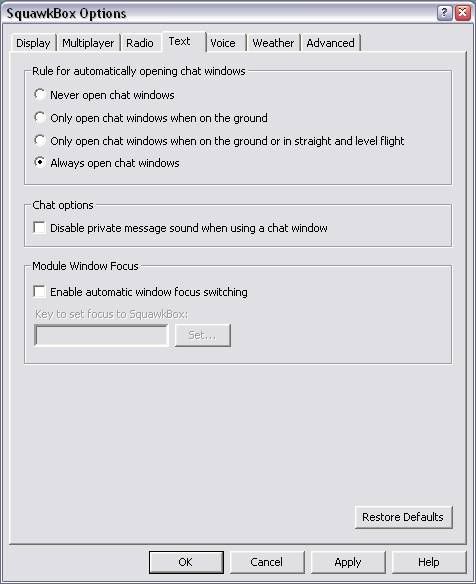

15. Now here's an overview only of the options. To get to them, in Squawkbox click Start / Options. These are my settings, you may experiment with yours as you like. Remember what you selected as your voice buttons.









(I use ActiveSky so don't use SB weather)





16. You now need to file a flight plan. This is so others know your intentions, and is the basis on which ATC will give you clearance. Click Start / Flight Plan.




17. Complete Flight Plan appropriately, when finished, Click Send Flight Plan.




18. In the bottom of the Squawkbox display it should say Flight Plan sent, as below.




19. On the far right of the Squawkbox display is a list of ATC that are in range. If there are none, tune your Comm 1 radio to Unicom, which is 122.80, you will be able to communicate with others, also on Unicom, via text.

Use text to announce your intentions. If you receive a private message box from an ATC to connect to them, tune your Comm 1 radio appropriately, as below. You will see, in the Sqawkbox window, details of the controller you have connected to.




20. Finally, this is the Squawk status Indicator. You normally would tune your transponder to whatever Squawk code the ATC gives you (ie change from the default of 1200 to 5503 etc).

Once you enter the runway or when told to, change from Stby (Standby)to Norm(al) 'Squawk Mode Charlie'. If asked, clicked the Ident button, which assists the ATC in locating you on their radar.

The green lghts also light up when Connected to an active ATC (on), Transmitting or Receiving.





I think that's all for now. You may use ServInfo to see who is online on Vatsim and IVAO at any one time. It's a handy utility, not as featured as the Eye of IVAO but it does the job.

If you want further help, post in the forum!

Matt

Revised 16 January 2007 - Reason: Updated URL for VATNZ
Last edited by ZK-MAT on Tue May 25, 2010 12:34 pm, edited 1 time in total.
User avatar
ZK-MAT
Senior Member

Topic author
Joined: Sun Apr 30, 2006 11:41 pm
Posts: 1689
Location: Papamoa

Postby Matthew » Sat Nov 18, 2006 2:16 pm

Matt,

Brilliant post! :D

Matthew
Matthew McTague
NZFF Moderator
VATNZ - TMA Controller
Student Pilot
ICT Guru


User avatar
Matthew
Forum Addict

Joined: Fri Sep 08, 2006 1:26 pm
Posts: 321
Location: Timaru, New Zealand

Postby Matthew » Thu Jan 25, 2007 4:32 pm

Hi all,

Goto VATSIM Registration to join VATSIM

Goto Division Deployment to change ur division.

Goto the VATSIM Pilot Resource Center and VATNZ to find more information.

Hope that helps :)

Matthew
Matthew McTague
NZFF Moderator
VATNZ - TMA Controller
Student Pilot
ICT Guru


User avatar
Matthew
Forum Addict

Joined: Fri Sep 08, 2006 1:26 pm
Posts: 321
Location: Timaru, New Zealand

Postby AlisterC » Sun Feb 04, 2007 5:16 pm

Thanks Matt
SB3 reinstalled and running perfectly due to your advice.
User avatar
AlisterC
NZFF Pro

Joined: Thu Jul 20, 2006 11:13 am
Posts: 2536
Location: Nelson, NZ

Postby Matthew » Sun Feb 04, 2007 5:17 pm

No worries, let me know if u need any more help. ;)
Matthew McTague
NZFF Moderator
VATNZ - TMA Controller
Student Pilot
ICT Guru


User avatar
Matthew
Forum Addict

Joined: Fri Sep 08, 2006 1:26 pm
Posts: 321
Location: Timaru, New Zealand

Postby Alex » Sun Feb 04, 2007 9:42 pm

Ah, two "Matt's" on one thread? Whats the world coming to? :P

Alex
User avatar
Alex
NZFF Pro

Joined: Fri Jul 14, 2006 3:39 pm
Posts: 3629
Location: Auckland

Postby ZK-MAT » Sun Feb 04, 2007 10:09 pm

heh, part of the master plan for world domination ....
User avatar
ZK-MAT
Senior Member

Topic author
Joined: Sun Apr 30, 2006 11:41 pm
Posts: 1689
Location: Papamoa

Postby AlisterC » Mon Feb 05, 2007 7:22 am

lol Sorry, thanks to both really. Matt S for the SB3 install - It's a little trickier than IVAO, but I'll no doubt get used to it again. And Matt McT as I used his link to go browse VATNZ :D
User avatar
AlisterC
NZFF Pro

Joined: Thu Jul 20, 2006 11:13 am
Posts: 2536
Location: Nelson, NZ

Postby Matthew » Mon Feb 05, 2007 8:27 am

LOL,

whoops sorry Matt :D
Matthew McTague
NZFF Moderator
VATNZ - TMA Controller
Student Pilot
ICT Guru


User avatar
Matthew
Forum Addict

Joined: Fri Sep 08, 2006 1:26 pm
Posts: 321
Location: Timaru, New Zealand
